John Deere 85G 500 hour service interval guide - part 2

We changed the hydraulic return filter and the oil tank breather filter in the last post.

In part 2 of the John Deere 85G 500-hour service interval tasks series, you’ll learn to replace the engine oil and filter.

We also have a video version on the Fortis HD YouTube channel. Check it out.

Need to save time? The following table shows every filter you need for the complete 500-hour service interval:

Item	OEM	Part Number
		Aftermarket equivalent
		Baldwin	Donaldson	Wix	Blumaq
Hydraulic Return Oil Filter	4450002	PT9443	N/A	N/A	N/A
Hydraulic Breather Filter	4437838	PA5316	N/A	N/A	N/A
Engine Oil Filter	MIU800650	B161-S	P502051	51568	N/A
Fuel Filter	MIU805005	BF9910	P553995	N/A	N/A
Water Separator Filter	MIU802421	N/A	N/A	N/A	N/A
Water Fuel Separator Housing + Plastic Bowl	MIA885254	N/A	N/A	N/A	N/A
Pilot System Oil Filter	4630525	N/A	N/A	N/A	N/A
Primary Engine Air Filter	FYD00001541	N/A	N/A	N/A	N/A
Secondary Engine Air Filter	FYD00001327	N/A	N/A	N/A	N/A
Cab Fresh Air Filter	4S00640R	N/A	N/A	N/A	N/A
Cab Recirculating Air Filter	FYA00011003	N/A	N/A	N/A	N/A

Drain the Engine Oil

Using an impact wrench, remove the screws holding the belly pan. Don’t stand right behind the belly pan to prevent it from suddenly falling on your face. Take out the screws from a side instead.

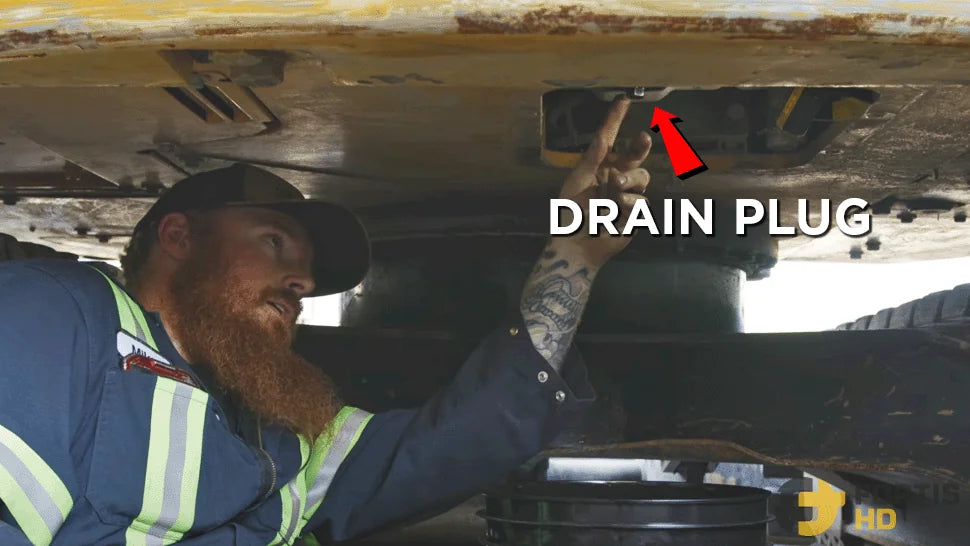

Before removing the drain plug, put a suitable pan or container to collect the engine oil.

Use a ratchet with a 19 mm socket to remove the plug. Turn the ratchet clockwise to loosen the plug.

We recommend sampling your engine oil at every service. Refer to the operator’s manual for more information.

Replace the drain plug seal if worn, and reinstall the drain plug. Don’t overtighten the plug, or you’ll strip the thread and won’t be able to take out the plug. Once the seal washer contacts, tight the plug and give it another 1/4″ turn.

Replace the Engine Oil Filter

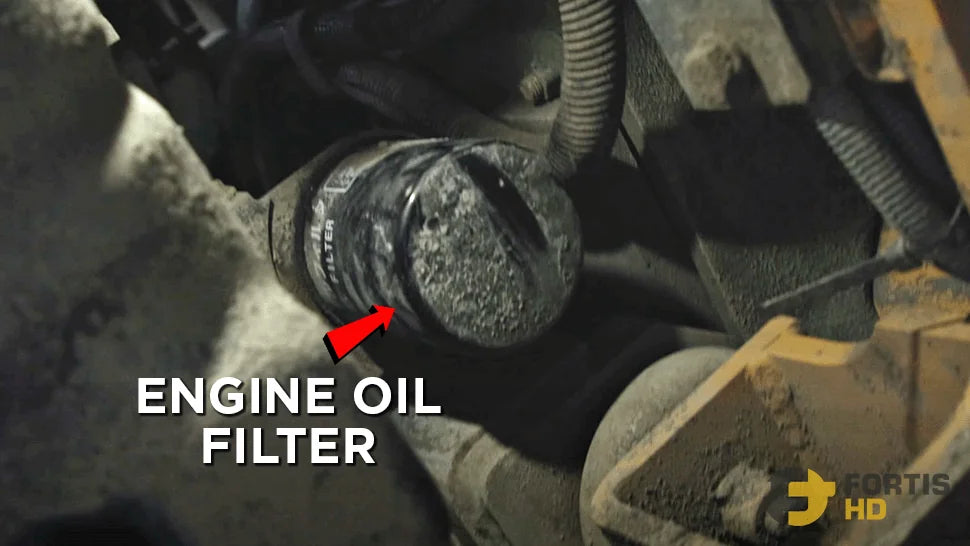

The engine oil filter on the 85G is on the inward side of the engine.

Using both hands, unscrew the filter turning counterclockwise but don’t take it out yet. Before removing the filter, slip a plastic bag over it to catch the oil coming out.

Using a clean cloth, wipe the filter base.

Lubricate the seal on the new filter and install it without overtightening—hand-tight the filter, no need to use a tool here.

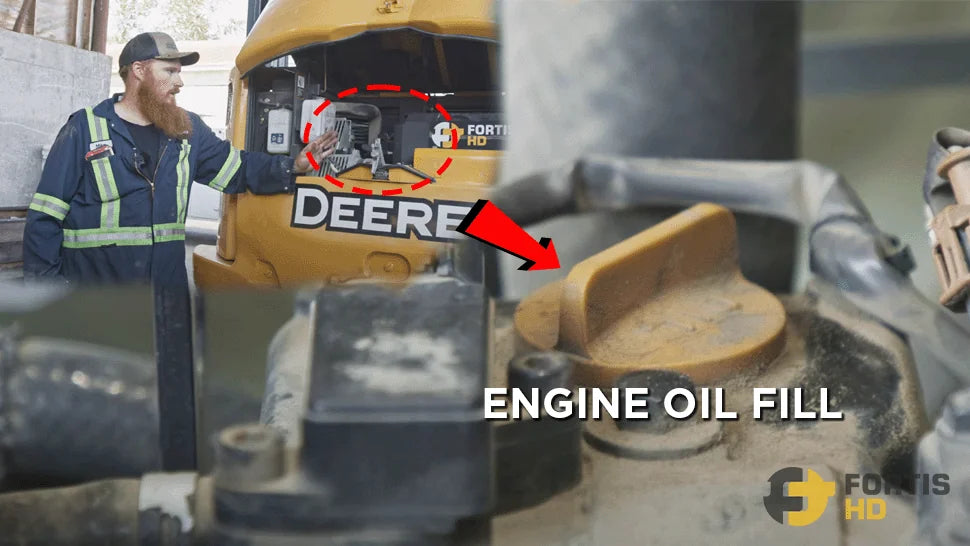

Remove the engine oil fill cap, turning it counterclockwise. Inspect the seal and replace it if needed.

Pour the oil using a funnel to avoid making a mess. Once you finish, check the level with the dipstick. Two marks or pinholes on the dipstick will show the MAX and MIN levels. The oil level should be somewhere between the two.

Run up the machine for a few minutes, double-check the level, and top off as required.

Choose Fortis HD for tools to tackle any service task and enhance your equipment’s performance and longevity.

Shop today for tools that keep you ahead in the industry.

Put the New Engine Oil

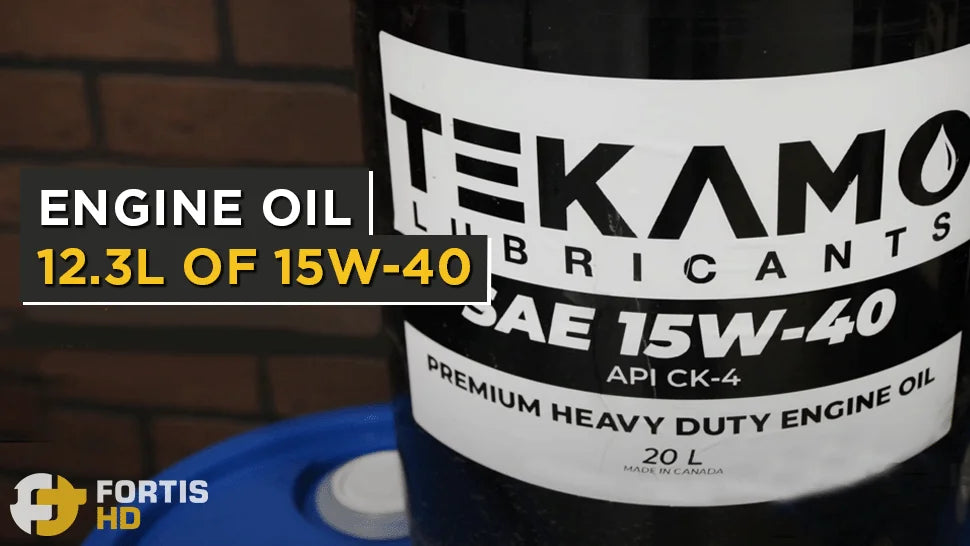

The John Deere 85G Excavator takes 12.3 liters of oil. We recommend Tekamo 15W40 premium heavy-duty engine oil (refer to the description in the YouTube video link of this post to choose the correct oil weight according to climate).
