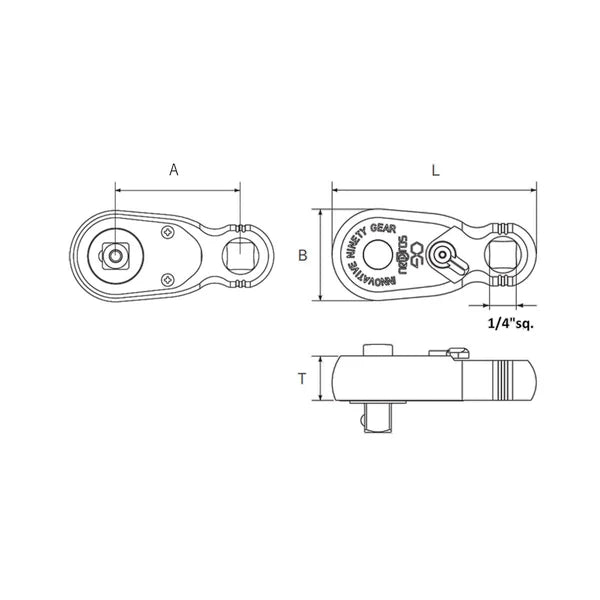

  • Nepros 1/4"sq. Stubby Ratchet Handle (90-Tooth) mechanical drawing

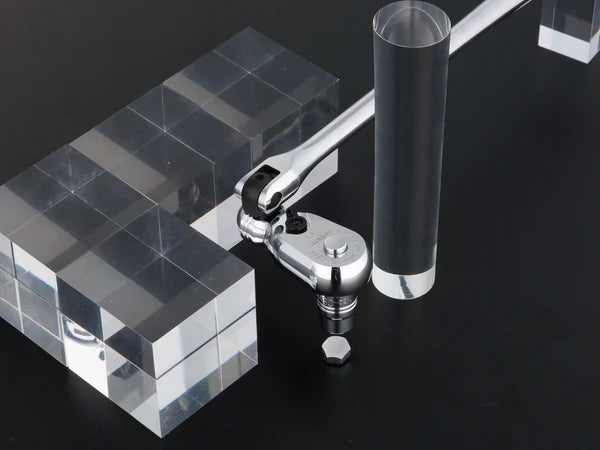

  • Nepros 1/4"sq. Stubby Ratchet Handle (90-Tooth) Close view
1 3

Nepros 1/4"sq. Stubby Ratchet Handle (90-Tooth)

$107
Sale Sold out

SKU: NBR290H

Shipping calculated at checkout.

Status : In Stock
Save

    Guaranteed Secure Checkout

    Easy Online Returns

    Return this item within 90 days of purchase. Read Return Policy

    View full details
    Nepros 1/4"sq. Stubby Ratchet Handle (90-Tooth) Front View

    Nepros 1/4"sq. Stubby Ratchet Handle (90-Tooth)
    Ultra-Compact 1/4

    Ultra-Compact 1/4" Stubby Ratchet for Tight Spaces


    A short-handle 1/4" drive ratchet built for cramped access where longer ratchets get blocked. Features a 90-tooth gear for a 4° swing arc, plus a push-button “union” mechanism that helps prevent sockets from dropping off unless the button is pressed. Made in Japan with nepros fit-and-finish and attention to smooth, light ratcheting feel.

    Specs

    Spec

    Detail

    Drive Size


    1/4" square drive

    Tooth Count


90-tooth

    Swing Arc (Feed Angle)


    4°

    Gear Action


    4

    Head / Body Dimensions


    A: 30 mm; B: 22 mm; T: 11 mm

    Overall Length

    L: 49 mm

    Weight


    60 g


    Socket Retention


    Push-button “union” mechanism (helps prevent accidental drop-off)

    Country of Origin


    Made in Japan

    Where This Ratchet Shines

    • Tight access work (dense engine bays, interior fasteners, compact housings)

    • Obstacle-heavy areas where a longer handle can’t swing

    • Pairing with a 1/4" breaker bar to reach around obstructions, then finishing with the stubby ratchet

    Key Features

    • 90-tooth gear for small swing work (4°)

    • Compact oval-head design for clearance

    • Push-button socket retention (union mechanism)

    • Tuned for smooth, light idling torque and refined ratcheting feel/sound

    • Short handle ideal for cramped spaces

    How to Use (3 Steps)

    1. Press the button and fully seat the socket onto the anvil.
    2. Keep the head square to the fastener and use short swings to break/turn.
    3. Press the button to remove the socket when you’re done.

    In the Box

    1/4"sq. Stubby Ratchet Handle (90-Tooth) (NBR290H)

    Safety Notes

    • Use the right tool for break-loose torque (add a breaker bar if needed).

    • Keep the socket fully seated before applying force.

    • Avoid cheater pipes on a stubby handle.
