Ko-ken Special 1/4" Sq. Dr. Short NUT GRIP® Socket — 1/4"

$16
Sale Sold out

SKU: 2450AS-1/4

Shipping calculated at checkout.

Status : In Stock
Save

    Guaranteed Secure Checkout

    Easy Online Returns

    Return this item within 90 days of purchase. Read Return Policy

    View full details

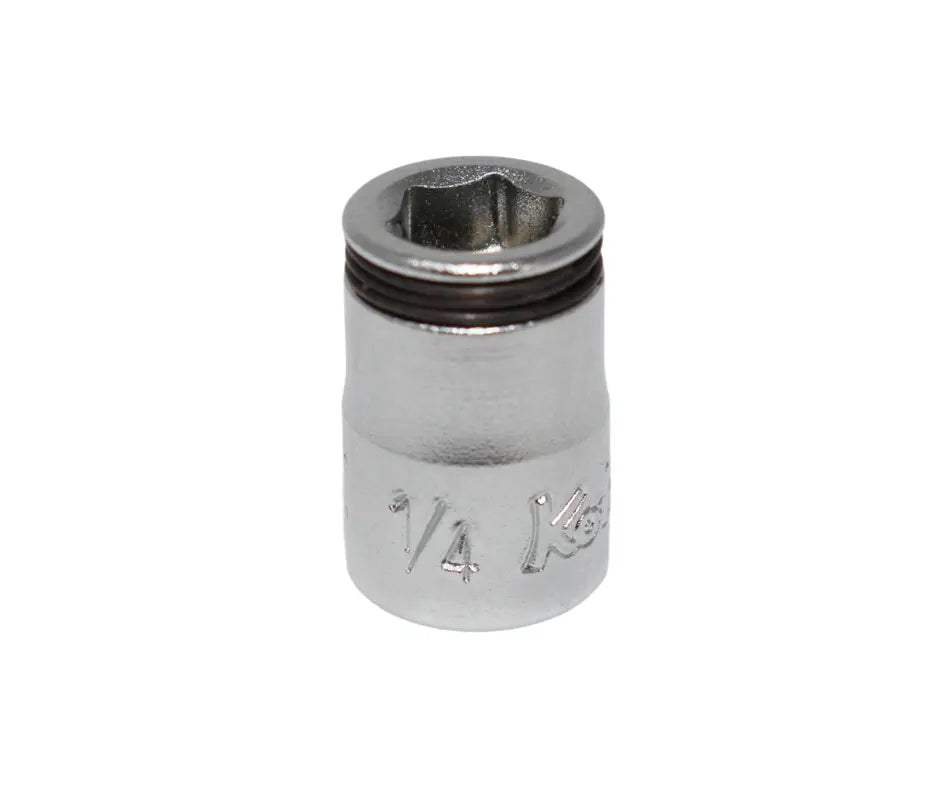

    Ko-ken Special 1/4" Sq. Dr. Short NUT GRIP® Socket — 1/4" Front View

    Ko-ken Special 1/4" Sq. Dr. Short NUT GRIP® Socket — 1/4"
    Hold a Nut or Bolt Without Magnets (Short for Tight Access)

    Hold a Nut or Bolt Without Magnets (Short for Tight Access)

    Ko-ken’s NUT GRIP® design holds non-magnetic nuts/bolts firmly in a 6-point socket using a spring ring and opposing balls—so hardware stays put when you’re starting threads or working overhead. Short body helps when swing room and depth are limited.

    Specs

    Spec

    Detail

    Type

    Short 6-Point Nut Grip Socket

    Drive Size

    1/4" Square Drive

    Output Size

    1/4"

    Output Type

    6 Point

    Unit of Measure (UOM)

    SAE

    Finish / Category

    Chrome hand socket

    Why NUT GRIP® (No Magnets)

    • Grabs and retains non-magnetic nuts/bolts for faster starts and fewer drops.
    • Uses a spring steel ring with two opposing balls to create holding force while still allowing removal.

    Why “Short” Matters

    • Better clearance in tight engine bays, interiors, and crowded assemblies.

    • Less wobble vs stacking extensions just to reach a shallow fastener.

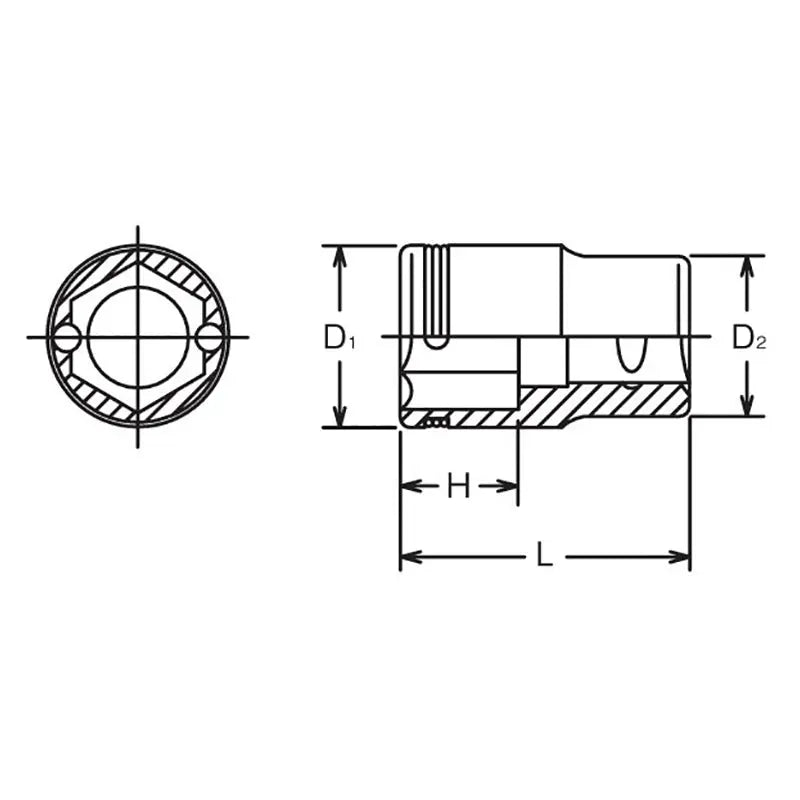

    Product Dimensions (Line Drawing Reference)

    • D2: 11.2mm
    • H: 3.5mm
    • L: 17mm

    Best Use Cases

    • Starting small hardware where dropping a nut/bolt is costly (covers, brackets, clamps).
    • Overhead work where gravity fights you.
    • Tight-clearance fasteners where a standard-length socket won’t fit.

    In the Box

    • 1x Ko-ken Special 1/4" Sq. Dr. Short NUT GRIP® Socket — 1/4" (SAE)
