• Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP® Socket — 7/16 Front View
  • Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP® Socket — 7/16 mechanical drawing
1 2

Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP® Socket — 7/16

$16
Sale Sold out

SKU: 2450AS-7/16

Shipping calculated at checkout.

Status : In Stock
Save

    Guaranteed Secure Checkout

    Easy Online Returns

    Return this item within 90 days of purchase. Read Return Policy

    View full details

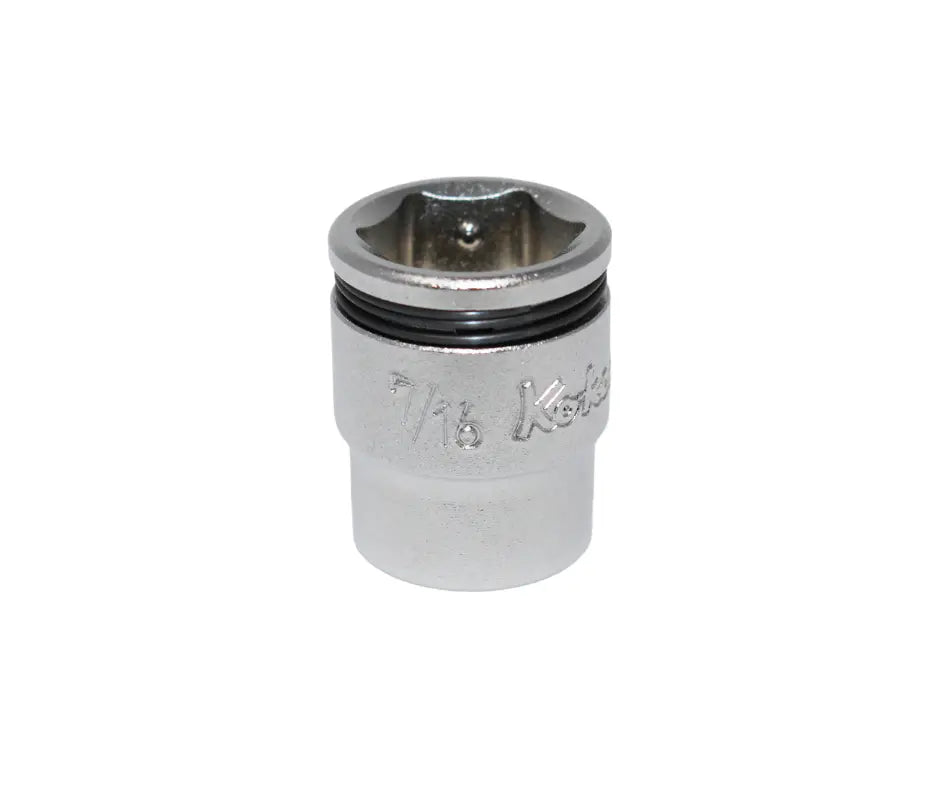

    Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP® Socket — 7/16 Front View

    Ko-ken Special 1/4 Sq. Dr. Short NUT GRIP® Socket — 7/16
    Hold 7/16

    Hold 7/16" Nuts & Bolts Without Magnets (Short 1/4" Drive)

    Ko-ken’s NUT GRIP® design helps you keep a 7/16" nut/bolt captured in the socket so you can start fasteners one-handed and avoid dropping hardware into tight spots. It uses a spring steel ring and two internal balls to hold non-magnetic fasteners firmly—no magnets required.

    Specs

    Spec

    Detail

    Brand

    Ko-ken

    Drive Size

    1/4" square drive

    Socket Type

    Short hand socket (chrome)

    Fastener Size

    7/16" (SAE)

    Point Style

    6-point (Nut Grip retention design)

    Retention Method

    2 balls + spring steel ring (non-magnetic holding)

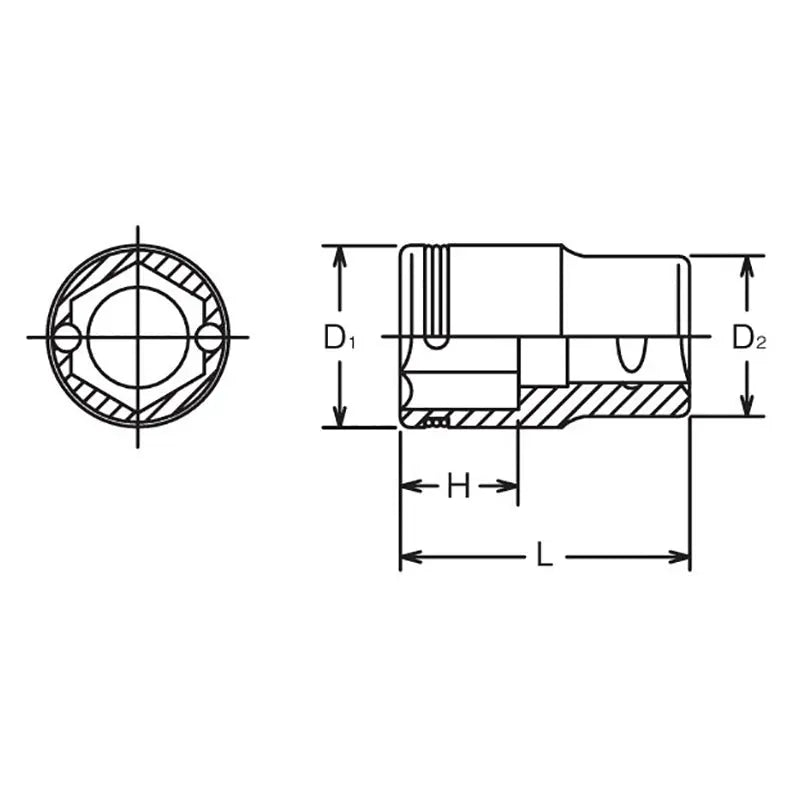

    Product Dimensions (line drawing)

    D1: 16mm; D2: 14.3mm; H: 6.5mm; L: 20mm

    Why NUT GRIP® Helps in Real Work

    • Start nuts/bolts in awkward positions without “finger balancing” the fastener
    • Reduce dropped hardware risk in engine bays, under-dash work, and crowded brackets
    • Holds fasteners without magnets (useful for non-magnetic hardware and when you don’t want metal fuzz buildup)

    How It Works (Quick Explanation)

    Inside the socket, two ball bearings on opposing flats are pushed by a spring/coil system. When the nut/bolt enters the socket, the balls press against the fastener and keep it from falling out while you position and start the thread.

    Best Use Cases for This Short 7/16"

    • Tight clearance where a longer deep socket won’t fit
    • Starting fasteners overhead or at odd angles
    • Any job where dropping a nut/bolt would cost time (covers, brackets, guards, accessory mounts)

    In the Box

    • 1x Special 1/4" Sq. Dr. Short NUT GRIP® Socket — 7/16 (2450AS-7/16)

    Safety Notes

    • Make sure the socket is fully seated on the fastener before applying force.
    • Use hand tools as intended; match torque to the fastener and application.
    • If the fastener is extremely seized, step up to the correct drive size and tool for the job.
