Knipex 7 Pc Pliers Wrench Set (COMPLETE)

Knipex 7 Pc Pliers Wrench Set

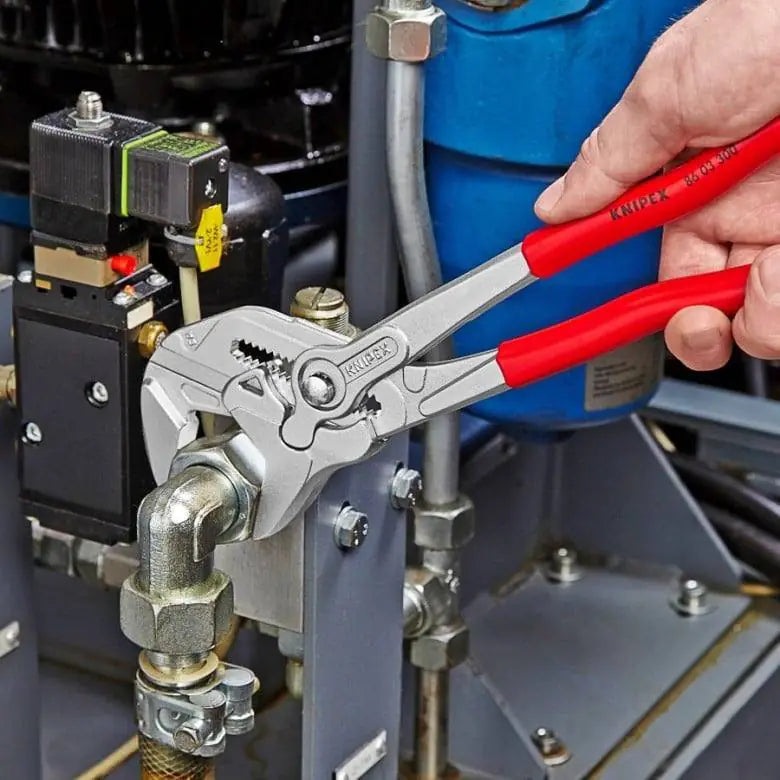

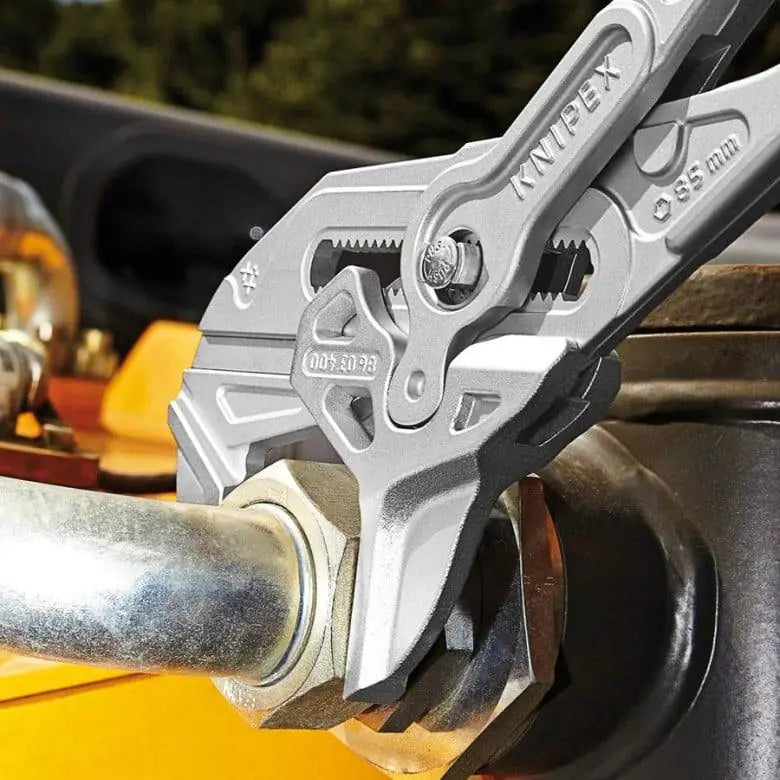

• The Pliers Wrench is an innovative tool that combines the functions of a pliers and a wrench in one tool. With its high leverage design, the Pliers Wrench is ideal for various tasks like gripping, turning, pressing, and bending. Whether you need to tighten or loosen nuts and bolts or require precise gripping, the Pliers Wrench is the ideal choice
• Replaces a full set of inch and metric open end wrenches up to 3 3/8"
• Smooth jaws for damage free installation of plated fittings - working directly on chrome
• Adjustable tightening tool

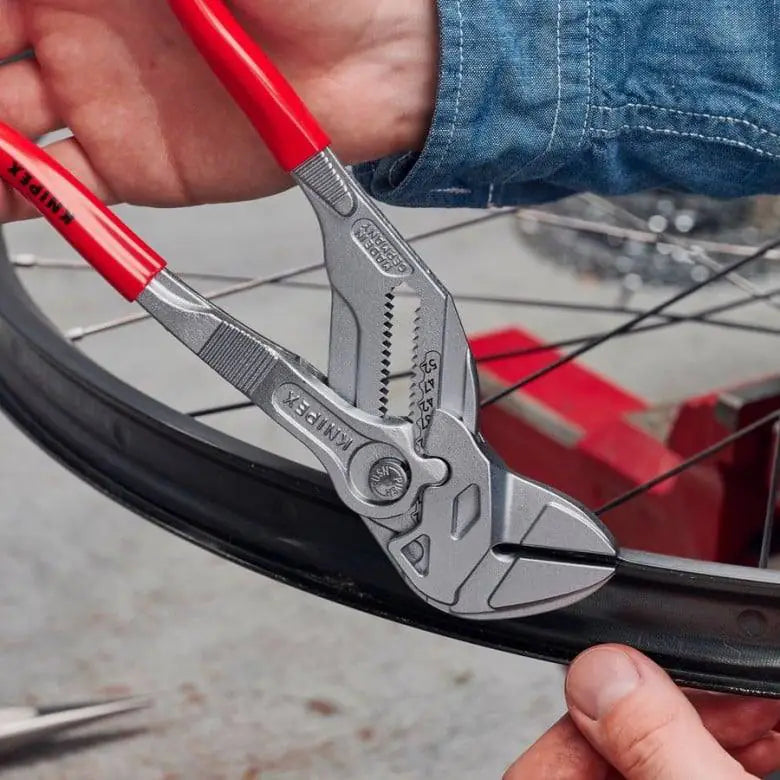

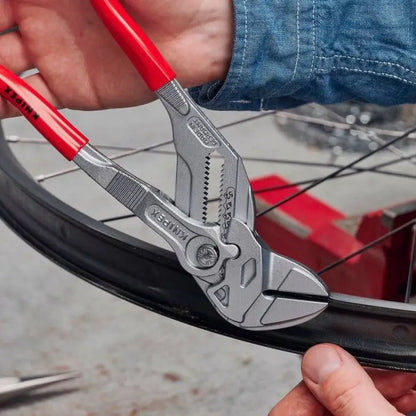

• Excellent for gripping, holding, pressing and bending applications
• Zero backlash jaw surface pressure prevents damage to edges of sensitive components
• Multiple adjustment positions at the touch of a button directly on the workpiece
• Laser-etched scale allows the wrench opening to be set before gripping onto workpiece - metric and inch markings
• Parallel jaws allow infinitely variable gripping of all widths to the specified maximum size
• Lever transmission greater than 10-1 for strong gripping power
• The action of the jaws allows bolted connections to be tightened and released quickly using the ratchet principle
• Reliable catching of the hinge bolt: no unintentional shifting

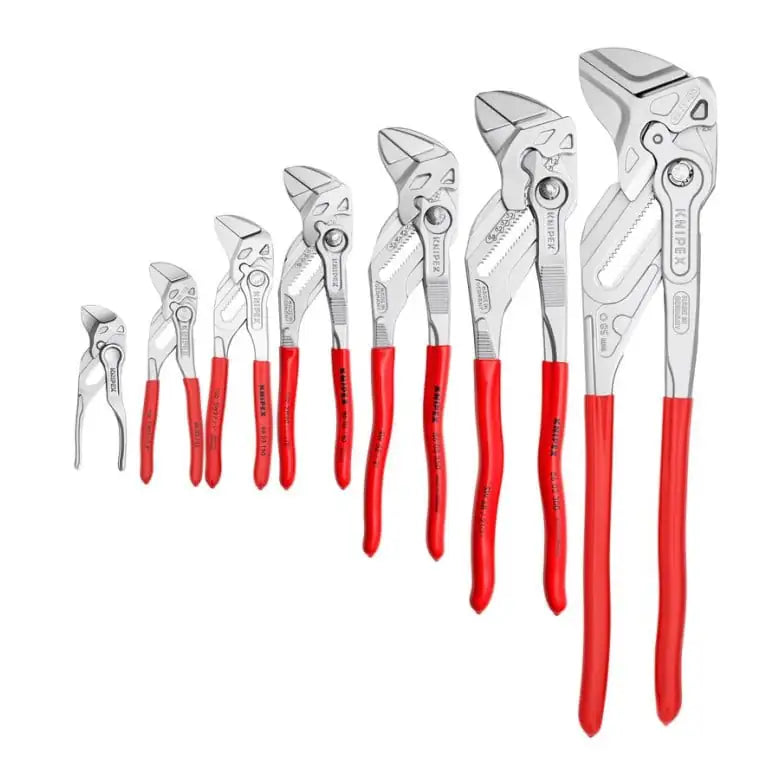

• Set includes seven (7) Pliers Wrench: 86 04 100 (4"), 86 03 125 (5"), 86 03 150 (6"), 86 03 180 (7 1/4"), 86 03 250 (10"), 86 03 300 (12"), 86 03 400 US (16")

Product Specification:

• Part Number: 9K 00 80 167 US
• UPC: 843221029494
• Country of Origin: Germany
• Width: 19"
• Height: 4 1/2"
• Weight: 7.031 lbs.
• 1000 Volt Insulated: No
• ESD Indicator: No
• Spring Loaded: No
• Material Type: Chrome vanadium electric steel, forged, oil-hardened
• Handle Type: Plastic coating
• Gripping Surface: Smooth
• Surface Finish: Chrome Plated
• Joint Type: Box-joint
• Number of Adjustment Positions: 10 (86 04 100); 11 (86 03 125); 14 (86 03 150); 15 (86 03 180); 19 (86 03 250); 24 (86 03 300); 25 (86 03 400 US)
• Jaw Thickness: 3/32" (86 04 100); 13/64" (86 03 125); 9/32" (86 03 150); 5/16" (86 03 180 and 86 03 250); 3/8" (86 03 300); 25/32" (86 03 400 US)
• Tip Thickness: 1/8" (86 03 125); 3/16" (86 03 150); 13/64" (86 03 180); 5/16" (86 03 250); 3/8" (86 03 300); 31/64" (86 03 400 US)
• Max Jaw Opening - Hex: 3/4" (86 04 100); 7/8" (86 03 125); 1" (86 03 150); 1 1/2" (86 03 180); 2" (86 03 250); 2 1/2" (86 03 300); 3 3/8" (86 03 400 US)
• Max Jaw Opening - Working Capacity: 3/4" (86 04 100); 7/8" (86 03 125); 1" (86 03 150); 1 1/2" (86 03 180); 2" (86 03 250); 2 1/2" (86 03 300); 3 3/8" (86 03 400 US)
• Reach: does not contain SVHC
• RoHS: not applicable
