1,000 Hour Service Interval Guide for a Komatsu PC200LC Excavator – Part 5

Written by Luis Montes Updated On March 3, 2025

In the fourth post of this series, we serviced the final drive and changed the engine and cabin air filters.

In this final post, we’ll change the main pump oil to complete the 1,000-hour service interval on the Komatsu PC200LC excavator.

We also have a video version on the Tekamo HD YouTube channel. Check it out.

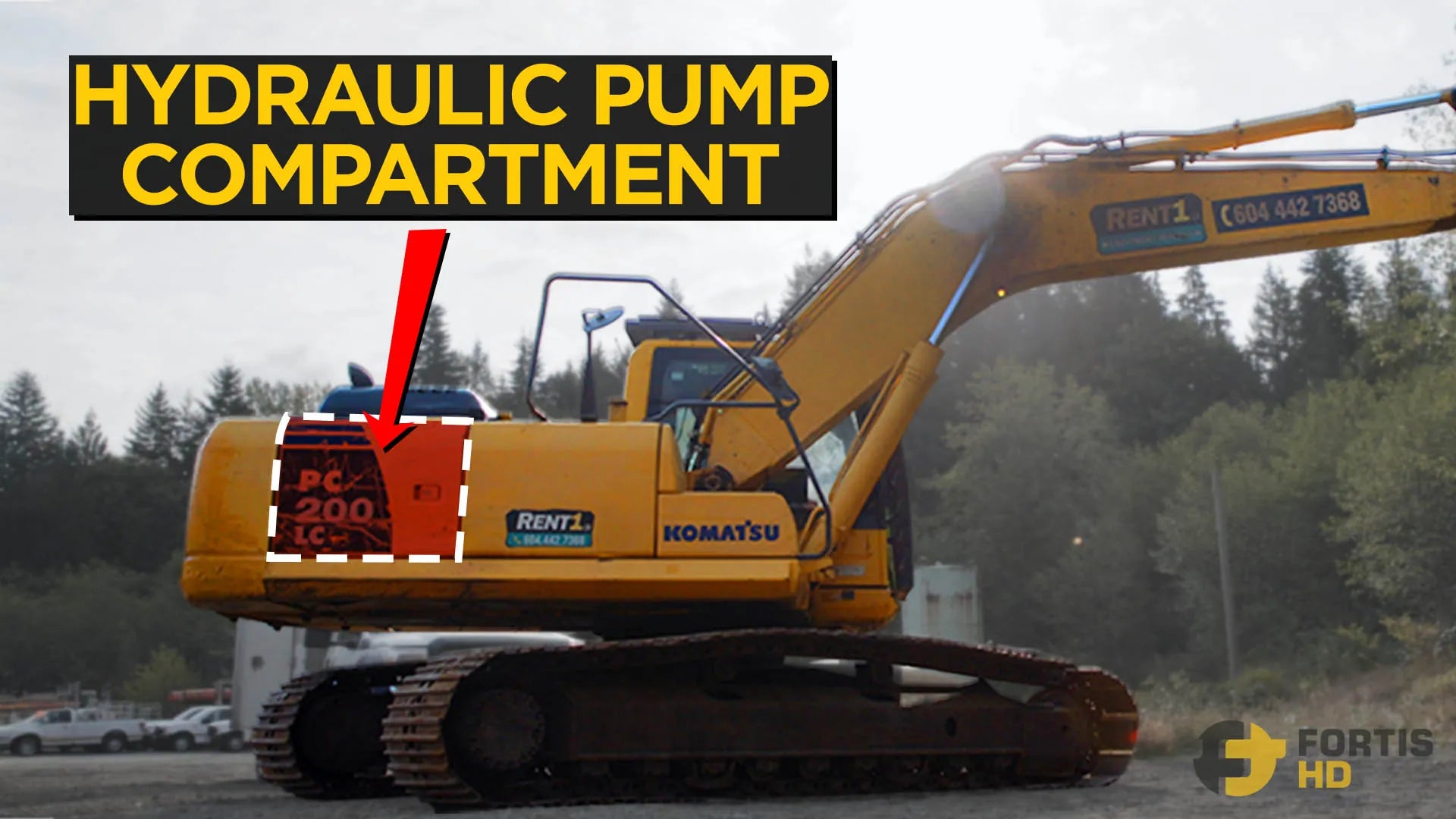

Change the Main Pump Oil

Before draining the final drive, line it up to the correct draining position, which is the top mark at the top and the groove representing the oil level as horizontally as possible.

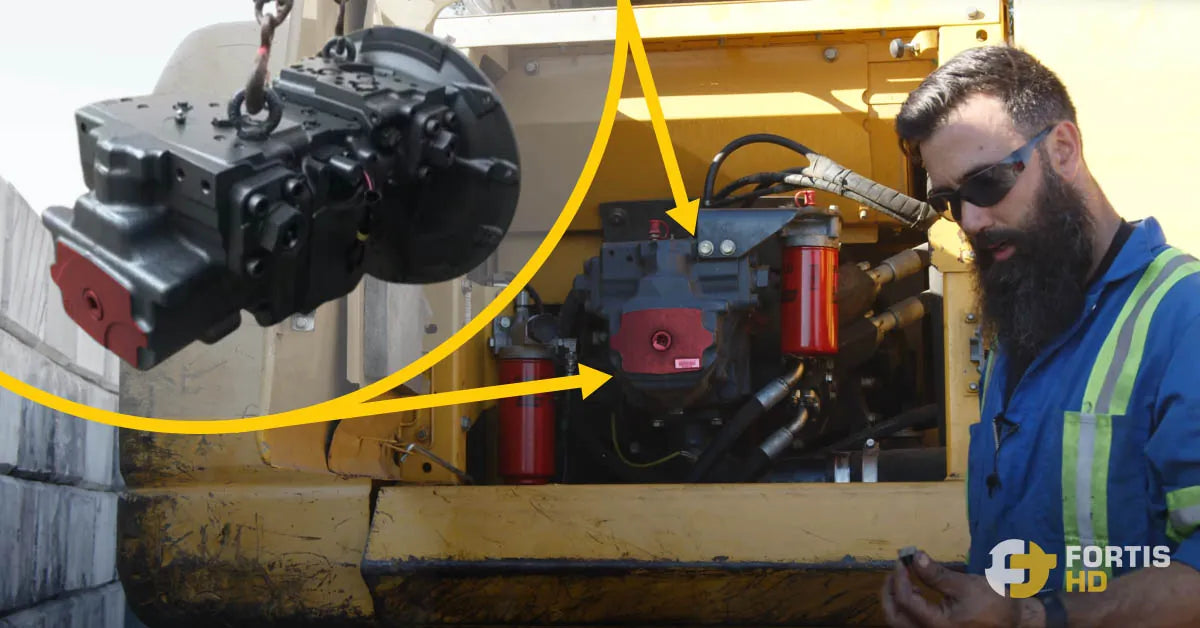

The PC200LC-8 main hydraulic pump requires about 0.13 gallons (half a liter) of oil.

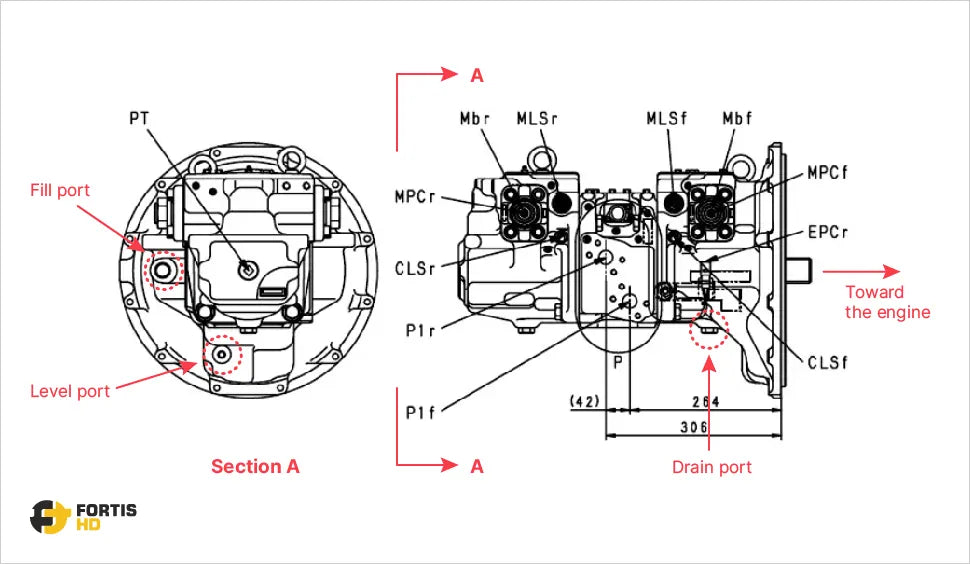

You’ll need the following socket and tools to service the main pump:

• A 1/2” (13 mm) ratchet for the drain plug (the drive end fits inside the drain plug).
• A 3/4″ (19 mm) for the level plug.
• A 1/2″ breaker bar for the fill plug.

If you don’t want to remove more belly pans, you’ll need extension bars to reach the fill and level plugs. They are quite far back, near the engine.

Once the pump drains completely, put some pipe tape on the plug and reinstall it.

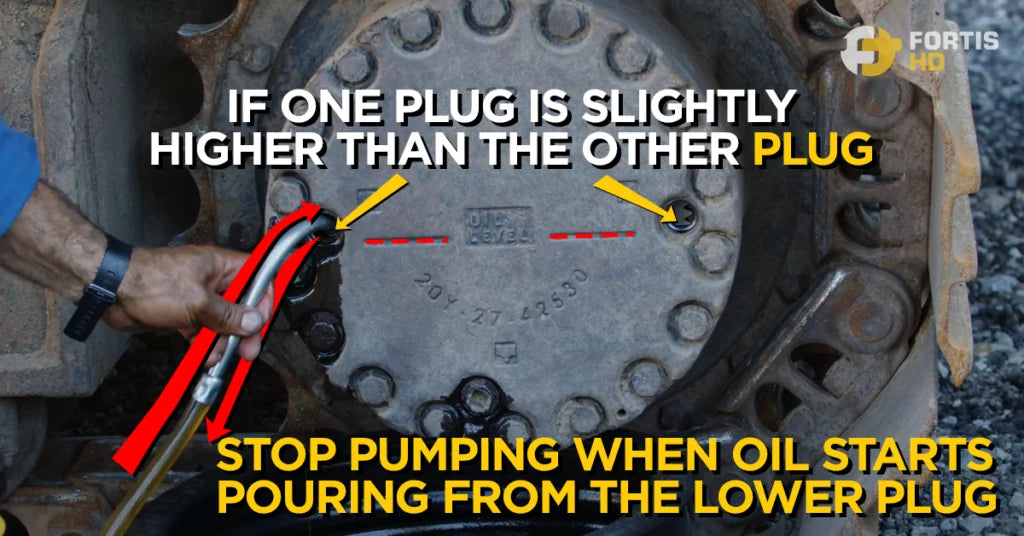

Pump oil until you see it leaking from the level plug port.

There’s no need to reinstall the plugs super tight. Just snug them.

Remove any dribblings with brake cleaner and wipe around the plugs with a clean rag.

Visit the Fortis HD tools website section for top-tier ratchets and breaker bars to efficiently tackle heavy-duty tasks such as servicing excavators, skid steers, and compact track loaders.

Final Tasks

Reinstall the belly pans, check the tension of the tracks, and grease the entire machine.

We have several videos on how to check the track tension on excavators. Since the process is pretty much the same for all excavators, here’s one where Keith adjusts the track tension on a Cat 314E.

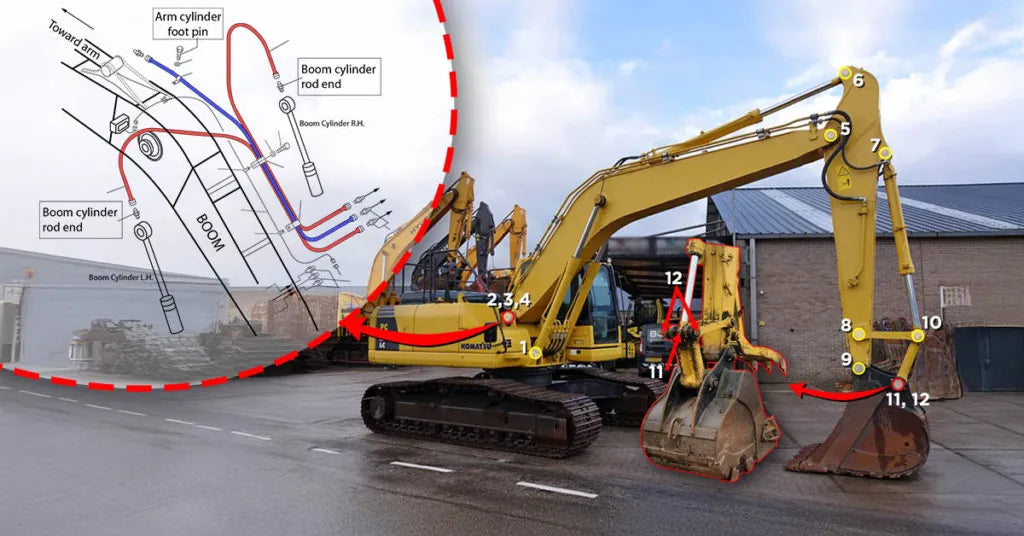

To wrap up the 1,000 hour tasks, service the excavator’s grease points. The Komatsu PC200LC grease points are:

• Boom cylinder foot pin (2 points).
• Boom foot pin (2 points).
• Boom cylinder rod end (2 points).
• Arm cylinder foot pin (1 point).
• Boom-arm coupling pin (1 point).
• Arm cylinder rod end (1 point).
• Bucket cylinder foot pin (1 point).
• Arm-link coupling pin (1 point).
• Arm-bucket coupling pin (1 point).
• Link coupling pin (2 points).
• Bucket cylinder rod end (1 point).
• Bucket-link coupling pin (1 point).

Wrapping Up

Visit the Fortis HD blog for more service interval posts.

Be sure to check out the other posts we have in this series to cover every task for your Komatsu PC200LC 1,000 hour service interval

• Drain the Engine and Swing Gearbox Oil. Replace the Engine Oil and Primary Fuel filters.
• Refill the engine oil, change the secondary fuel filter, and check the engine coolant level and condition.
• Change the Hydraulic Oil and Breather filters. Refill the Swing Gearbox Oil.
• Change the Final Drive Oil. Replace the Engine and Cabin Air Filters.

If you don’t have the time to perform the service yourself or want to enroll in a preventative maintenance program for your heavy equipment, contact Tekamo HD to schedule a heavy-duty mechanic.
