Ko-ken Special 1/4" Drive Short NUT GRIP® Socket — 5/16"

$16
Sale Sold out

SKU: 2450AS-5/16

Shipping calculated at checkout.

Status : In Stock
Save

    Guaranteed Secure Checkout

    Easy Online Returns

    Return this item within 90 days of purchase. Read Return Policy

    View full details
    Ko-ken Special 1/4" Drive Short NUT GRIP® Socket — 5/16" Front View

    Ko-ken Special 1/4" Drive Short NUT GRIP® Socket — 5/16"

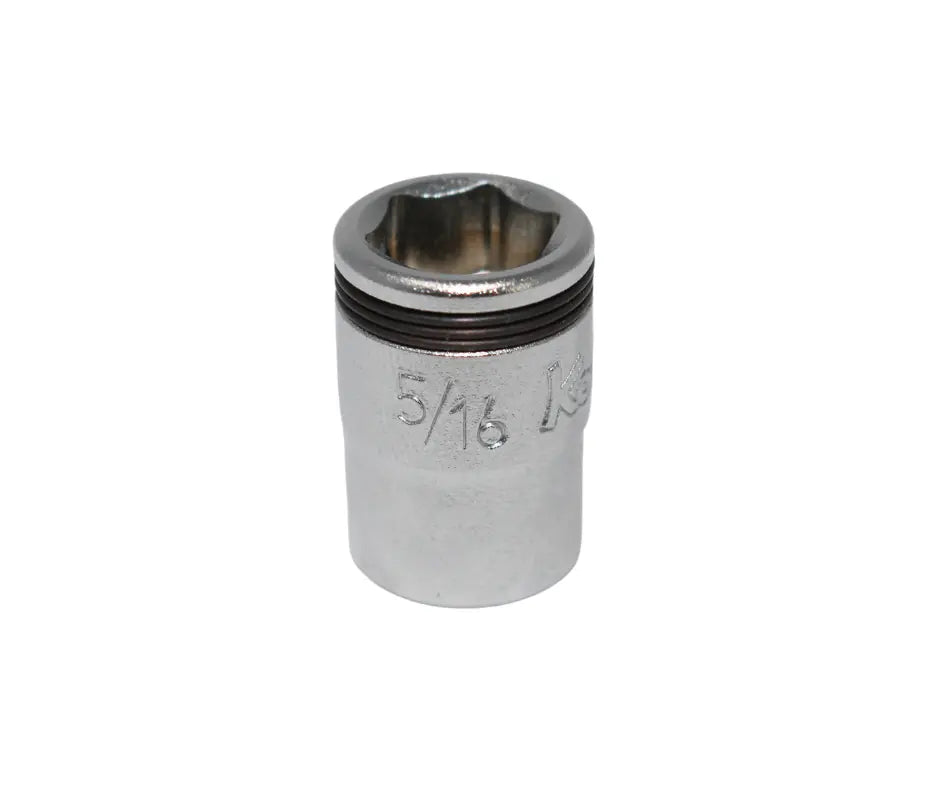

    A Short 5/16

    A Short 5/16" Socket That Holds the Fastener Without Magnets

    Ko-ken’s NUT GRIP® design holds non-magnetic nuts/bolts firmly inside a 6-point socket using a spring + opposing ball bearings (not a magnet). Great for starting fasteners one-handed, working overhead, or pulling hardware out of tight pockets where dropped nuts are a problem. Compact “short” length keeps access tight and controlled.

    Specs

    Spec

    Detail

    Brand

    Ko-ken

    Drive Size

    1/4" square drive

    Socket Size

    5/16" (SAE / inch)
Socket Type

    Socket Type

    Short NUT GRIP® (non-magnetic fastener holding)

    Point Style

    6-point (fastener-holding design works in a 6-point socket)

    Finish / Category

    Chrome hand socket

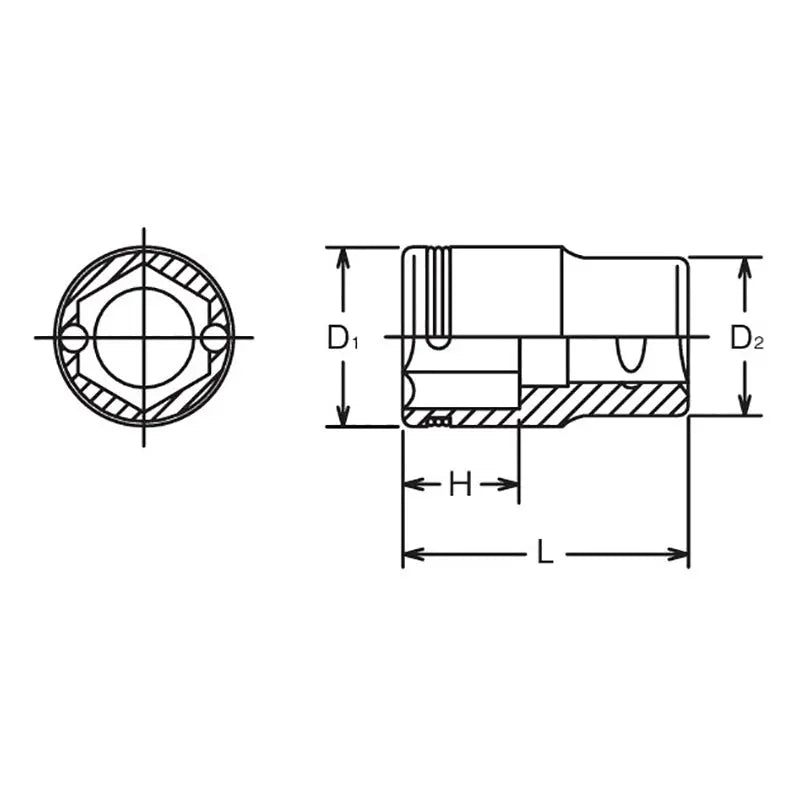

    Product Dimensions (from line drawing)

    D1: 12.3mm; D2: 11.7mm; H: 5mm; L: 18mm

    Approx. Weight

    9 g

    How NUT GRIP® Works

    • Two ball bearings sit on opposing flats and are retained by a spring steel ring.
    • As the nut/bolt enters the socket, the balls push outward against the spring tension.
    • That pressure holds the fastener securely so you can guide it into place without relying on a magnet

    Why You’d Choose This Short Socket

    • Prevents dropped hardware: helps keep the nut/bolt captured during placement and removal.
    • Better in tight access: short 18mm overall length keeps clearance tight and reduces wobble.
    •
No magnet issues: ideal for non-magnetic fasteners and situations where magnets grab metal debris.

    Common Use Cases

    • Starting nuts on studs in cramped bays (hands can’t follow the socket in).
    • Overhead work where dropping hardware costs time.
    • Fasteners near sensitive components where you don’t want magnetic pickup.

    In the Box

    • 1x Ko-ken Special 1/4" Sq. Dr. Short NUT GRIP® Socket — 5/16" (SKU: 2450AS-5/16)

    Safety Notes

    • Keep the socket fully seated before applying torque.
    • If the fastener is damaged/rounded, step down to a tighter-fit solution before forcing it.
    • California Proposition 65 warning applies (see product page warning)
